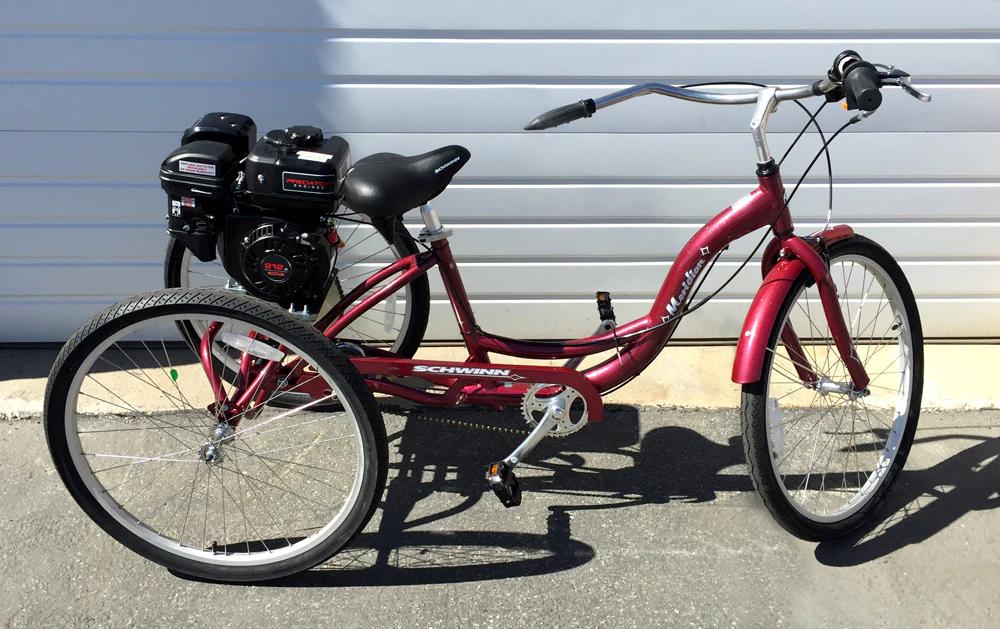

212cc Motorized Gas Tricycle

212cc Motorized Gas Tricycle

NOTE: Due to high demand, the trike is currently unavailable. You may purchase the engine kit separately using this link.

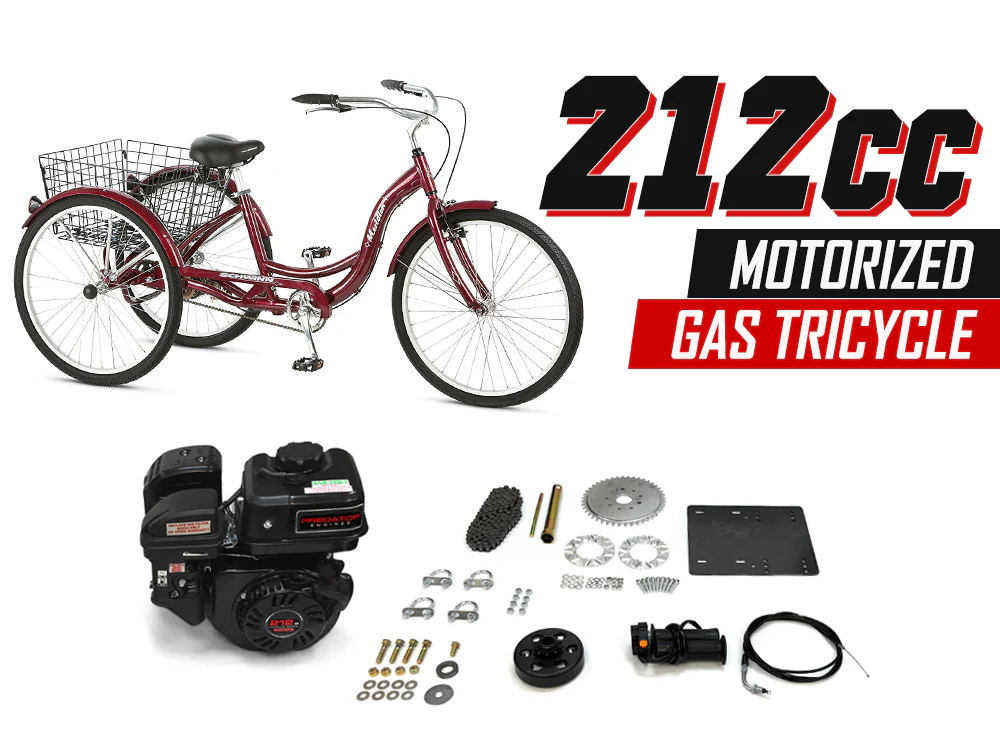

This complete motorized trike includes:

1. 26" Schwinn Meridian Adult Tricycle
2. 6.5 HP, 212cc Predator Engine
3. Centrifugal Clutch
4. 415 Chain
5. 44 Tooth Sprocket
6. Pineapple Bushing Kit
7. 3/16” Thick Steel Engine Mount
8. (4) U-Clamps
9. (4) 5/16-18 Bolts, Washers and Nuts
10. 5/16-24 Bolt with BIG washer and thick washer
11. Throttle handle with kill switch and wire extension
12. Throttle Wire
13. 2.8 L. Gas tank
14. Muffler
15. Installation Manual



ENGINE SPECS:

1. Diameter: 70mm
2. Horsepower (hp): 6.5
3. Maximum (rpm): 3600 RPM
4. Maximum Torque (ft. - lbs.): 8.1 ft-lbs. @ 2500 RPM
5. Mounting pattern: 162mm L x 75.5mm W - 80.5mm W (6.40" L x 2.95" W - 3.17" W )
6. Shaft rotation direction: Counter clockwise
7. Sound rating (dB): 104 dB
8. Start type: Recoil
9. Product Height: 9 inches.
10. Product Length: 12-1/2 inches.
11. Product Weight: 37.5 lbs. / 17 kg
12. Product Width: 14-1/2 in.
13. Shaft length (in.): 2.43" / 61.7 mm
14. Shipping Weight: 38.72 lb.
15. Stroke length (in.): 55 mm

Our gasoline operated products are NOT compliant with Environmental Protection Agency ( E.P.A. ) or California Air Resources Board (C.A.R.B) for the use on/off Public roads. Upon purchase, the buyer agrees to use products for racing (closed-course competition) only and NOT for on/off public roads.
